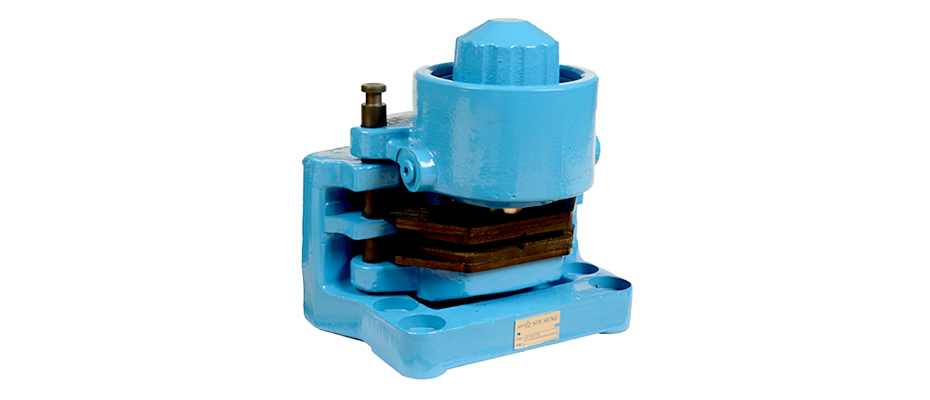

PARKING BRAKE

Parking brake is a hydraulic parking brake actuator which can set main brake pressure, and gives a long life by changing
brake pad.

Specifications

-  Piston Stroke : 6 mm Max
-  Operating Pressure: 100 bar
-  Brake MaxRelief Pressure: 210 bar
-  Applying Disc Diameter : 250 ~ 600 mm
-  Max Operation Load Function (as of before operation clearance 1.0)
    Clamping Force-Static : 34,000 N
    Clamping Force-Dynamic : 34,000 N
    Max Braking Torque-Static : 6,900 Nm
    Max Braking Torque-Dynamic : 5,600 Nm
